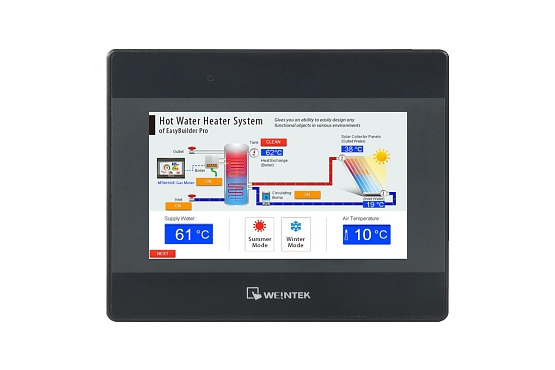

Weintek MT8072iP
new
Weintek MT8072iP operator panel with a screen size of 7" is designed for visualisation of technological processes running on programmable logic controllers (PLC).
279,00 €
230,58 € excl. VAT
Less than 20 items in stock
230,58 € excl. VAT
Less than 20 items in stock
Product description
Weintek MT8072iP touchscreen HMI panel is designed for visualization of technological processes running on programmable logic controllers (PLC). The MT8072iP model features a colored LCD screen with 7" screen size, LCD backlight, and high color density for a high level of detail.The panel is powered by a Dual-core RISC ARM CPU with 128 MB RAM, giving the product enough performance for quick system boot. The device is also provided with an onboard 256 MB eMMC memory. For communication, two serial ports (RS485 + RS232) are present along with a single USB 2.0 port and a single 10/100 Mbit Ethernet.
The configuration is performed via the Easy Builder PRO configuration software, which can be downloaded on this link for free.
The product is CE-certified.
Further information
In the Files tab (see above) you can find the product datasheet and the EasyBuilder Pro manual. A guide to Modbus and BACnet communication protocol for Unipi controllers with Mervis software is available on our Knowledge Base.Documentation
|
Product datasheet Product features and technical information |
download |
|
EasyBuilder PRO complete manual Complete EasyBuilder PRO software manual |
download |
| Display type | TFT LCD (color) |
| RAM | 128 MB |
| Display diameter | 7'' |
| CPU | Dual-core RISC |
| Screen resolution | 800 × 480 px |
| Number of colours | 16.7 million |
| Communication interfaces | RS485, RS232, USB, Ethernet |
| Internal memory | 256 MB eMMC onboard memory |
| Power | 24V DC (+-20%) |
| Dimensions | 200,4 × 146,5 × 34 mm |
| Case material | Plastic |
| Weigth | ~520 g |
