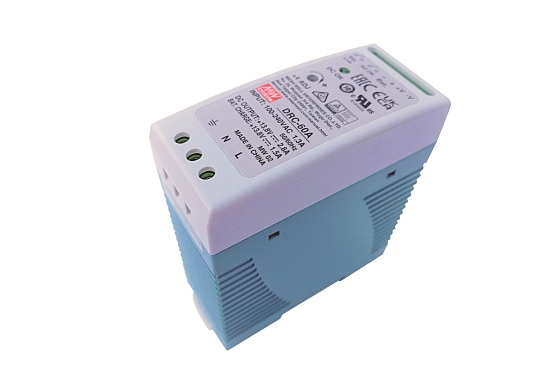

DIN rail power supply with UPS function - 12 V DC, 4.3 A
DIN rail uninterruptible power supply (UPS) Mean Well DRC-60A - 12 V DC, 60 W. Can be used with any Unipi controller or Extension as an uninterruptible power supply when used with a suitable DC/DC converter.
Discontinued
Product description
The Mean Well DRC-60A power supply with UPS functionality is suitable in combination with a DC/DC converter for powering most of Unipi products. The power supply is designed for DIN rail (35 mm) mounting. Detailed information can be found in the product datasheet.IMPORTANT: For use with Unipi units or extension modules, a suitable DC/DC converter must be connected between the UPS and the Unipi device in order to stabilize the output voltage from the UPS to a constant value of 24 V DC. See the table below for a suitable converter for your Unipi device:
| S size Unipi Patron and Neuron units xS and xG Extension modules IAQ sensors |
DDR-15G-24 |
| M and L size Unipi Patron and Neuron units xM Extension modules |
DDR-30G-24 |
| Unipi 1.1 and 1.1 Lite | DDR-15G-5 |
| Unipi Gate | No need of a DC/DC converter |
Detailed tutorial for connecting backup power supply for Unipi units can be found on the Unipi Knowledge Base.
Download
Detailed technical data can be found in the Files tab or on the manufacturer's website.
Information about the manufacturer:
Mean Well
Langs de Werf 8, 1185XT Amstelveen, The Netherlands
E-mail: [email protected]
Documentation
|
Product datasheet Product features and technical information |
download |
Detailed parameter information and exact I/O specifications can be found in the datasheet.
| Rated power | 60 W |
| Dimensions | 40 × 90 × 100 mm (w × d × h) |
| Weight | 0.3 kg |
| Current range | 0 ~ 4,3 A |
| Model name | DRC-60A |
| Rated load current (CH1) | 2.8 A |
| Rated battery current (CH2) | 1.5 A |
| Maximum DC voltage | 13.8 V |
| Manufacturer | Mean Well |
