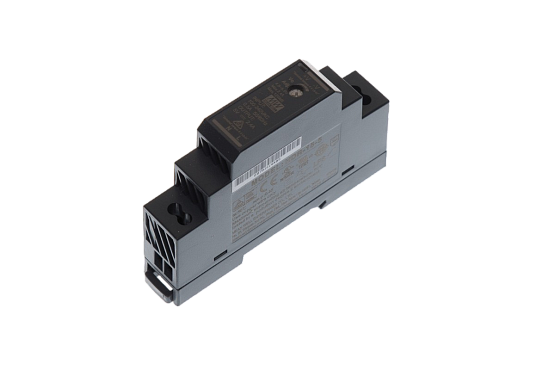

Power supply for DIN rail - 5V DC, 2.4A
Power supply 5 V⎓, 2.4 A with DIN rail holding recommended for Unipi 1.1, Unipi 1.1 Lite, and 8-Relay Addon EMO-R8 products.
19,01 € excl. VAT
In stock > 20 pcs
Extra > 50 pcs within 10 days after ordering
Check availability
Power supply recommended for Unipi 1.1, Unipi 1.1 Lite, and 8-Relay Addon EMO-R8 products. Can be installed to DIN rail (35 mm). The complete technical specification can be found in the product datasheet. Along with this product comes power cable with an appropriate connector.
IMPORTANT: This power supply is NOT recommended for Neuron and Patron products.
Information about the manufacturer:
Mean Well
Langs de Werf 8, 1185XT Amstelveen, The Netherlands
E-mail: [email protected]
Documentation
|
Datasheet Technological specification of the product |
download | |
|
3D STEP model 3D model file in *.step format |
download |
Detailed parameter information and exact I/O specifications can be found in the datasheet.
| Rated power | 12 W |
| Dimensions | 95 mm × 60 mm × 25 mm |
| Weight | 100 g |
| Current range | 0 ~ 2.4 A |
| Model name | HDR-15-5 |
| DC Voltage | 5 V (±10%) |
| Rated Current | 2.4 A |
| Manufacturer | Meanwell |
