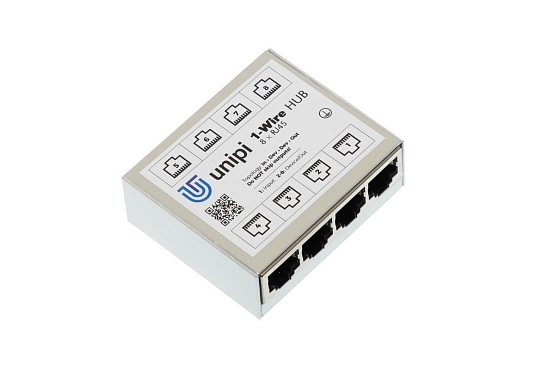

1-Wire 8 port hub
The 8-port hub for connection of more digital temperature sensor to 1-Wire bus.
The two-side 8-port with 4 ports on each side for connection of more digital temperature sensor to single 1-Wire bus channel. It is possible to connect 7 sensors in total, the 8th port is reserved for connection with a control device. Correct connection is depicted on the aluminium case. The hub can be mounted on a DIN rail (35 mm) - plastic DIN holders are included in the package.
For details regarding the topology and connection, see the documentation.
Detailed parameter information and exact I/O specifications can be found in the datasheet.
| Case material | Aluminium |
| Width | 6,25 mm |
| Weight | 82.3 g |
| Depth | 31.2 mm |
| Length | 39.8 mm |
