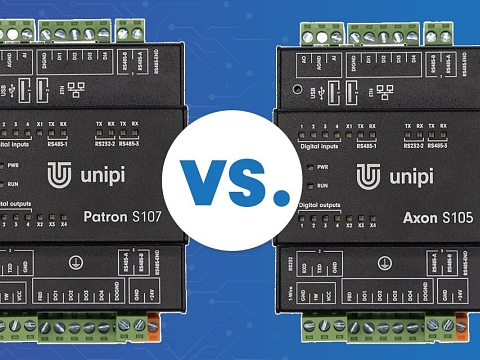

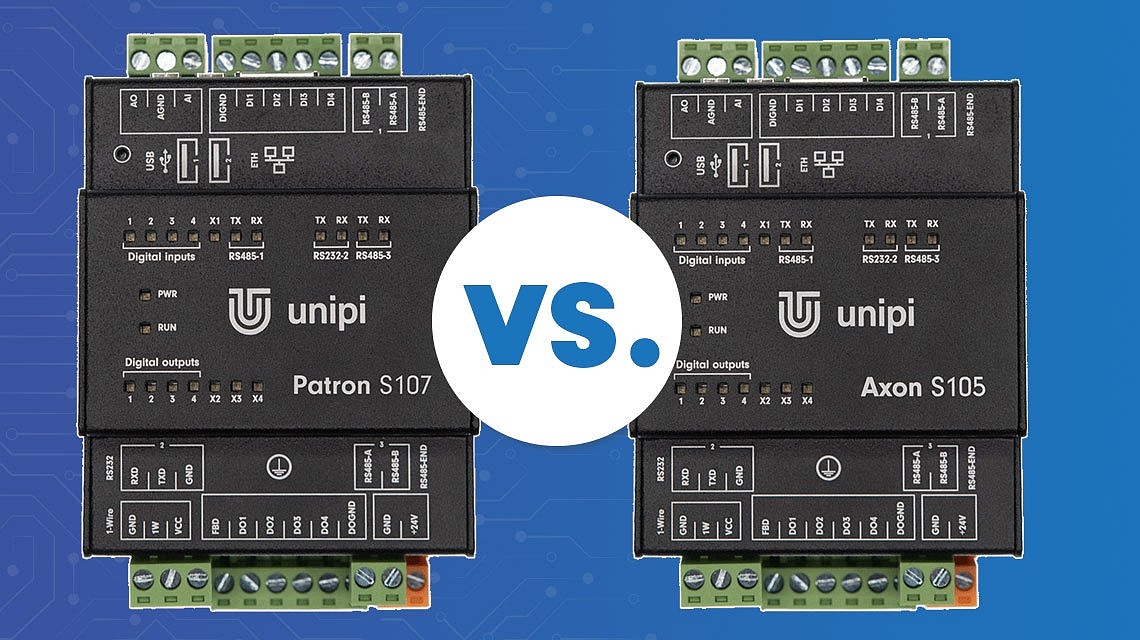

Find out what are the differences between the Unipi Patron and Unipi Axon product lines.

Unipi Patron and Unipi Axon product lines represent compact and powerful controllers suitable for a wide range of applications. Both product lines are designed for industrial automation and other demanding environments (photovoltaics, use in SCADA systems etc.). The Patron line is the direct successor to the Axon line, retaining all advantages of its predecessor. Thanks to the new computing module based on the NXP i.MX 8M Mini CPU, the Patron line also features a significantly higher computing power. Both product lines are equipped with an onboard 8GB eMMC memory. On this link, you can also download the comparison in PDF format.

Comparison

Product line  Unipi Patron Unipi Axon
Computing module
Module type NXP i.MX 8M Mini Industrial computer
CPU Quad-core, max. 1.8 GHz Quad-core Allwinner-H5 (ARM), 1.2 GHz
RAM  1 GB 1 GB
Internal memory Onboard 8GB eMMC memory Onboard 8GB eMMC memory
Inputs and outputs
Digital inputs Yes Yes
Digital outputs Yes Yes
Relay outputs Yes Yes
Analog inputs Yes Yes
Analog outputs Yes Yes
Communication interface
RS485 Yes Yes
RS232 Yes Yes
1-Wire Yes Yes
Ethernet 100 Mbit 1 Gbit
USB 2× USB 2.0 2× USB 2.0
Software
Open-source Yes, powered by Linux OS Yes, powered by Linux OS
Mervis Preinstalled, licence request included in the package Preinstalled, licence request included in the package
API EVOK, Modbus TCP, SysFS EVOK, Modbus TCP, SysFS
Other features
Dimensions Type S: 70×90×60 mm
Type M: 140×90×60 mm
Type L: 210×90×60 mm
Type S: 70×90×60 mm
Type M: 140×90×60 mm
Type L: 210×90×60 mm
DIN rail mount
(35 mm)
Yes Yes
Aluminium chassis
(IP20)
Yes Yes
Warranty duration 4 years 2 years
Special models LTE module (S167, M267, M567) LTE module (M265, M565)
Customization options Yes Yes
Recommended use Automation projects, industrial automation, HVAC, control and monitoring, remote management, SCADA, sensorics, smart home... Automation projects, industrial automation, HVAC, control and monitoring, remote management, SCADA, sensorics, smart home...
Display on e-shop Display the Patron line Display the Axon line

Patron model overview

Model DI DO RO AI AO RS485 RS232 1-Wire
Type S, the size on the DIN rail: 4 modules (7 cm)
S107 4 4 - 1 1 2 1 1
S117 4 4 - 1 1 4 - 1
S167 LTE1 4 4 - 1 1 2 - 1
S207 8 - 8 - - 1 - 1
Typ M, the size on the DIN rail: 8 modules (14 cm)
M207 20 4 14 1 1 2 1 1
M267 LTE1 20 4 14 1 1 2 - 1
M527 8 4 5 5 5 3 1 1
M567 LTE1 8 4 5 5 5 3 - 1
Typ L, the size on the DIN rail: 12 modules (21 cm)
L207 36 4 28 1 1 2 1 1
L527 24 4 19 5 5 3 1 1

1) LTE module

Axon line model overview

Model DI DO RO AI AO RS485 RS232 1-Wire
Type S, the size on DIN rail: 4 modules (7 cm)
S105 4 4 - 1 1 2 1 1
S115 4 4 - 1 1 4 - 1
S1551 4 4 - 1 1 2 1 1
S205 8 - 8 - - 1 - 1
S215 8 - 8 - - 1 1 -
S505 - - - 4 4 1 - 1
S515 - - - 4 4 1 1 -
Type M, the size on DIN rail: 8 modules (14 cm)
M205 20 4 14 1 1 2 1 1
M2652 20 4 14 1 1 2 - 1
M525 8 4 5 5 5 3 1 1
M535 4 - 5 8 8 2 1 -
M5652 8 4 5 5 5 3 - 1
Type L, the size on DIN rail: 12 modules (21 cm)
L205 36 4 28 1 1 2 1 1
L525 24 4 19 5 5 3 1 1

1) Ethernet (1 Gbit + 10/100 Mbit)
2) wireless LTE module
