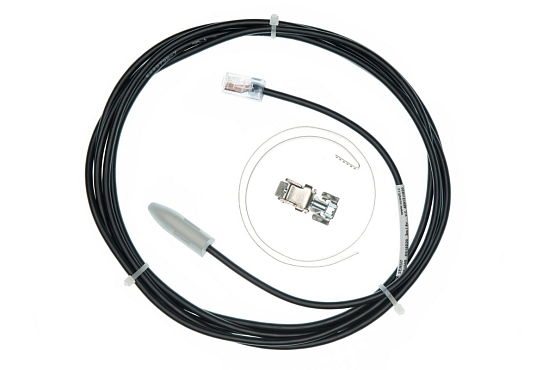

1-Wire pipeline surface temperature sensor (3 m)
The DS 150B 1-Wire temperature sensor is designed for contact temperature measuring on pipeline surfaces or below pipeline insulation. The sensor utilizes the DS18B20 temperature chip placed within a metal sheath (IP65 protection). The 3 m cable features RJ45 connector for easy connection, the package also contains a metal band with a locking clamp for fastening the sensor to the pipeline surface or below pipeline insulation. For communication with the control system, the sensor uses the 1-Wire bus and can be installed in any system compatible with the DS18B20 chip. The product underwent a metrologic inspection.
Product description
The DS 150B 1-Wire temperature sensor is designed for contact temperature measuring on pipeline surfaces or below pipeline insulation. The sensor utilizes the DS18B20 temperature chip placed within a metal sheath (IP65 protection). The 3 m cable features RJ45 connector for easy connection, the package also contains a metal band with a locking clamp for fastening the sensor to the pipeline surface or below pipeline insulation. For communication with the control system, the sensor uses the 1-Wire bus and can be installed in any system compatible with the DS18B20 chip. The product underwent a metrologic inspection.
Compatibility
The sensor can be connected to all systems featuring a 1-Wire bus. The wiring scheme is available in the product’s documentation (see the Files tab above).
The sensor is compatible with the Mervis and the EVOK web service APIs. In both environments, the sensor can be used immediately after connection.
Further info
Documentation
|
Product datasheet Product features and technical information |
download | |
|
Manual User guide and technical documentation |
download |
| Sensing element type | DS18B20 |
| Temperature measuring range | -40°C/+105°C |
| Measurement accuracy | ± 0.5 °C in range of -10°C/+85°C, ± 2°C in range of -30°C/+100°C |
| Power | 3-5V DC |
| IP rating | IP65 |
| Model name | DS 150B |
