Pt1000 resistance pipeline surface temperature sensor (3 m)

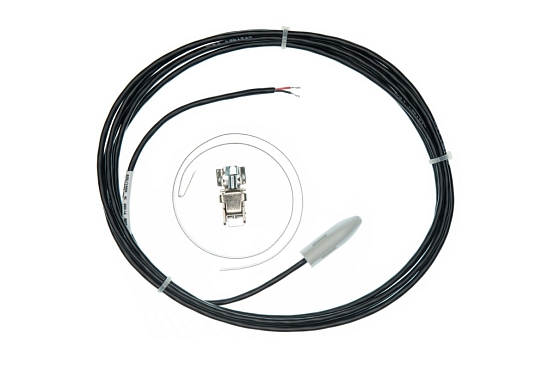

The PTS 350B resistance temperature sensor is designed for contact temperature measuring on pipeline surfaces or below pipeline insulation. The device utilizes the Pt1000 resistance temperature sensor with a metal sheath, a plastic cover, and a 3 m cable. The package also contains a metal band with a locking clamp for fastening the sensor to the pipeline surface or below pipeline insulation. The product underwent a metrologic inspection and can be used in any system compatible with the Pt1000 sensor.


25,00 €
20,66 € excl. VAT
In stock > 20 pcs
Check availability

Product description

The PTS 350B resistance temperature sensor is designed for contact temperature measuring on pipeline surfaces or below pipeline insulation. The device utilizes the Pt1000 resistance temperature sensor with a metal sheath, a plastic cover, and a 3 m cable. The package also contains a metal band with a locking clamp for fastening the sensor to the pipeline surface or below pipeline insulation. The product underwent a metrologic inspection and can be used in any system compatible with the Pt1000 sensor.

Compatibility

The sensor can be connected to all systems that support resistance measurements and are compatible with Pt1000 temperature sensors. The wiring scheme is available in the product’s documentation (see the Files tab above).

The sensor is compatible with the Mervis and the EVOK web service APIs. In both environments, the sensor can be used immediately after connection.

Further info

Documentation

Manual
User guide and technical documentation
download
Product datasheet
Product features and technical information
download

Sensing element type Pt1000/3850
Temperature measuring range -30°C/+105°C
Measurement accuracy Class A: Δt = ± (0.15 + 0.002|t|) in °C, Class B: Δt = ± (0.3 + 0,005|t|) in °C
Internal wiring resistance 0.102Ω/1 m (25°C)
IP rating IP65
Model name PTS 350B
