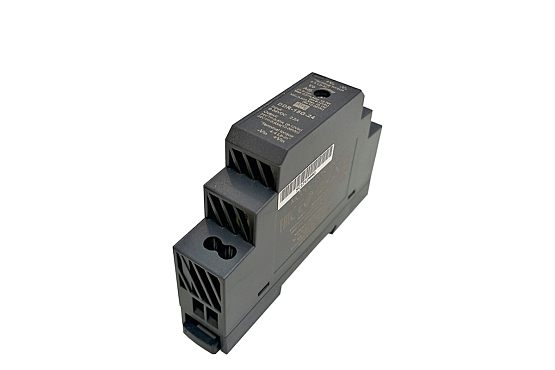

DIN rail DC/DC voltage converter - 24 V DC, 0.63 A
DIN rail DC/DC voltage converter DDR-15G-24 with input voltage 9–36 V DC, output voltage 24 V DC, and power 15 W.
Product description
DIN rail DC/DC voltage converter Mean Well DDR-15G-24 with input voltage 9–36 V DC, stable output voltage 24 V DC, and a wide operating temperature range of -40 °C to 85 °C is designed to stabilize the supply voltage. Thanks to these features, it is suitable for powering S size units from the Patron and Neuron product lines, or xS and xG extension modules.It is mostly used in combination with an uninterruptible power supply (e.g., DRC-60A). Detailed wiring instructions can be found on the Unipi Knowledge Base.
Detailed technical data can be found in the user manual (see the Files tab) or on the manufacturer's website.
Documentation
|
Certification Declaration of conformity |
download | |
|
Product datasheet Product features and technical information |
download | |
|
3D STEP model 3D model file in *.step format |
download |
| Control voltage | 9–36 V DC |
| Operation temperature | -40 °C to 85 °C |
| Dimensions | 17.5 × 54.5 × 90 mm (d × w × h) |
| Weigth | 68 g |
| Output current | 0.63 A |
| Rated output voltage | 24 V DC |
| Power | 15 W |
| Installation | DIN rail |
| Model name | DDR-15G-24 |
| Protection against | Voltage rise, reverse polarity, overload |
| Manufacturer | Mean Well |
