Make your own Smart Home.

This article may give you a better idea about what are the advantages of Smart Home, what you may need and how do you achieve them. System of smart home represents the an intelligent way how to interconnect individual parts and automate daily chores in householders two increase item convenience a comfort and lower the expense.

Perks of Smart Home



Přejít k nákupu

Programmable controller units cannot operate without control software. What is the right software?

Heating

Advantages

What I need

How I do it

+ comfort
+ automatic heating of the whole building
+ possibility of heating regulation for each individual room
+ heating in operation only when needed
+ overall overview about the temperature in different parts of the building
+ heating expense savings thanks to monitoring and correct settings of the system

+ controller unit with enough inputs and outputs,
+ digital thermometers,
digital radiator valves,
+ external relay (if needed)
+ power supply
+ SD card
+ software

+ boiler can be turned of/off with external / integrated relay
+ digital output (relay or transistor) open or closes connected radiator valve
+ place thermometers where you need to measure temperature
+ the system is controlled via software, where you can set rules or manually control it
+ for consumption masurement it is possible to connect meters into didital inputs or smart meters communication over Modbus

Example: if the temperature in room drops below  21°C, turn on the radiator = switch the relay 4

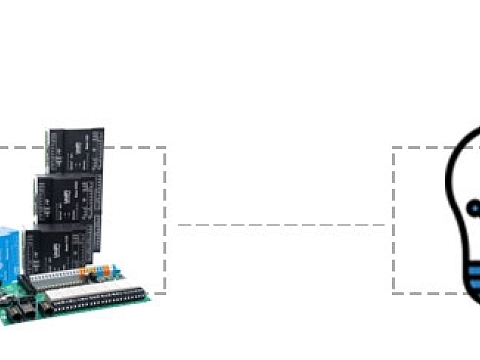

Lighting

Advantages

What I need

How I do it

+ confort
+ no need for manual switching lights on / off
+ no problem when I forget to turn the lights off, the light will turn of itself after the set period
+ přes řídící jednotku lze snadno rozsvítit celou skupinu světel (i když má každé svůj vlastní vypínač)





+ motion sensor
+ digital light switch
+ controller unit
+ light
+ power supply
+ SD card
+ software

+ strategically positioned motion sensor or digital lightswitch is to be connected to digital input of controller unit
+ connect the light to digital (relay or transistor) output
+ set the rules for lights in software

Example: if the signal from motion sensor is received, turn the lights on for 30 sec
Example: if a pulse is received from digital light switch, turn on the lights 1, 2 and 3, if they are off, turn off, if they are on



Irrigation

Advantages

What I need

How I do it

+ watering turns on/off according to the set program
+ it can operate according to the weather depending of the software and settings
+ the connected watering system can be remotely controlled

+ controller unit
+ software
+ power supply
+ SD card
+ digital valves
+ (Modbus meteostation)

+ connect digital valves to controller relays
+ connect the meteo station to the controller
+ set the rules in the control software

Example: if it is summer and the meteo station does not detect rain, turn on the irrigation for 10 minutes every hour

Dimming and shutters

Advantages

What I need

How I do it

+ comfort
with a one tap/click you can roll down shutters in the whole house
+ natural waking in the morning sunlight
+ if the big storm which could possibly damage the shutters is ahead, it is possible to rool shutters up remotely

+ controller unit
+ software
+ power supply
+ SD card

+ connect the motor circuits for shutter rolling to relay outputs
+ connect the digital wall switches to digital inputs
+ set the rules in the control softwware

Example: If the wall switch 1 is pressed, start rolling shutters down, if the wall switch 2 is pressed, start rolling shutters up
Example: if it is 19:00, roll down all shutters, and toggle lights on

Gate and garrage door

Advantages

What I need

How I do it

+ comfort
+ when leaving, you press 1 button and garage door and the gate is opened and will close after you leave automatically
+ when returning home you can open the gate and garage with one single press in mobile UI

+ controller unit
+ software
+ power supply
+ SD card

+ connect the garage door / gate motor circuits to relay outputs
+ connect digital wall switches to digital inputs
+ set the rules in the control software

Example: if the signal from garage wall switch is received, open the door and the gate for 1 minute and the automatically shut them

Remote and local control

Advantages

What I need

How I do it

comfort
+ overview and control over the building wherever there is Internet connection

+ enable remote access and configure the network
+ connect the controller to LAN
+ smartphone, notebook or tablet with Internet connection

+ connect to the web interface
+ control and manage your home

Example: turn on the boiler and central heating from your smartphone

How to start

The examples above were the specific applications you can use controller units for. Controller units are universal and with a simple logic it is possible to automate a lot of different devices. What should you consider when choosing a cotroller unit? The main thing to consider is number of required inputs and outputs. When planning connected devices it is always good to count on spare I/Os. You may realize, yoou need to connect more devices than you planned before the installation.

For a basic Smart home system model M203 is fairly sufficient. It has optimal ratio of digital inputs and relay outputs and is enough for connecting of several central heating digital valves, boiler and several lights and light switches. If you want home of the future, you will need model L203 or possibly combination of several control units.

Next step
