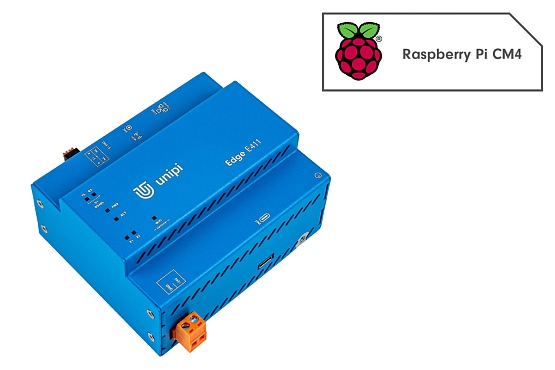

Unipi Edge E411 (1 GB RAM, 8 GB eMMC)
The Unipi Edge controller combines a PLC, RTU, edge device, IPC, and IoT/IIoT gateway in a single product. It can therefore be used in a wide range of solutions – automation, regulation, and monitoring of building management systems (BMS), HVAC, photovoltaic power plant control, and home or industrial automation systems. Thanks to the Raspberry Pi Compute Module 4, it provides high performance for demanding applications. You can choose from hundreds of product variants within the product models to achieve maximum flexibility for your project.
Features
- Powerful Raspberry Pi Compute Module 4 (4× Arm® Cortex®-A72, max. 1.5 GHz)
- Optional up to 8 GB RAM and 32 GB eMMC memory
- Wide range of communication options including wireless – Ethernet, RS485, WiFi, Bluetooth
- Enhanced cybersecurity thanks to TPM 2.0
- Software openness (supplied with Base OS operating system based on Linux – Debian)
- Operating temperature range from -20 °C to +60 °C
- Special features such as independent hardware Watchdog, user LEDs, or retain memory
- Wide power supply range
- I/O expansion with the xS product line
- Robust aluminum chassis (IP20), designed for installation to a DIN rail
- Product branding, customization options, upload your own operating system or Secure Boot setting during production
- Development and manufacturing in the European Union
Select product variant
The Unipi Edge controller combines a PLC, RTU, edge device, IPC, and IoT/IIoT gateway in a single product. It can therefore be used in a wide range of solutions – automation, regulation, and monitoring of building management systems (BMS), HVAC, photovoltaic power plant control, and home or industrial automation systems. Thanks to the Raspberry Pi Compute Module 4, it provides high performance for demanding applications. You can choose from hundreds of product variants within the product models to achieve maximum flexibility for your project.
Features
- Powerful Raspberry Pi Compute Module 4 (4× Arm® Cortex®-A72, max. 1.5 GHz)
- Optional up to 8 GB RAM and 32 GB eMMC memory
- Wide range of communication options including wireless – Ethernet, RS485, WiFi, Bluetooth
- Enhanced cybersecurity thanks to TPM 2.0
- Software openness (supplied with Base OS operating system based on Linux – Debian)
- Operating temperature range from -20 °C to +60 °C
- Special features such as independent hardware Watchdog, user LEDs, or retain memory
- Wide power supply range
- I/O expansion with the xS product line
- Robust aluminum chassis (IP20), designed for installation to a DIN rail
- Product branding, customization options, upload your own operating system or Secure Boot setting during production
- Development and manufacturing in the European Union
Overview of models and variants
All models are based on the Raspberry Pi CM4 processor (4× Arm® Cortex®-A72, max. 1.5 GHz) and feature TPM 2.0, NVRAM (128 kB), independent hardware Watchdog, real-time clock, and user LEDs.
In addition to the variants available in our e-shop, any combination of RAM/eMMC and wireless technology (LTE, WiFi/BT, GNSS) can be assembled. Contact us for a price quote.
*SMA connectors are only included in variants with wireless technology – see the comparison table in the image gallery.
Package contents
- Unipi Edge controller with Base OS operating system based on Linux – Debian
- Removable connectors
- Alumimnium DIN rail holder (35 mm) + 3× DIN rail holder mounting screw
1× grounding screw with a fan washer - Instruction leaflet
More information
- Unipi Edge product line introduction
- Technical specifications can be found in the product datasheet (see Files tab above)
- Manuals/tutorials and OS images in the Knowledge Base
Documentation
|
Product datasheet Product features and technical information |
download | |
|
Certification Declaration of conformity |
download | |
|
Modbus register map Table overview of Modbus registers |
download | |
|
Product leaflet Product line information |
download | |
|
Instruction leaflet Quick instructions and safety information |
download |
Detailed parameter information and exact I/O specifications can be found in the datasheet.
| CPU | Raspberry Pi CM4 (4× Arm® Cortex®-A72, max. 1.5 GHz) |
| RAM | Options 1, 2, 4 or 8 GB LPDDR4 |
| Internal memory | Options 8, 16 or 32 GB eMMC |
| Ethernet | 1× 1 Gbps |
| RS485 interface | 1× |
| WiFi/Bluetooth | Options without WLAN / WiFi and Bluetooth |
| TPM 2.0 | Yes |
| Hardware Watchdog | Yes |
| Retain memory (NVRAM 128 kB) | Yes |
| User LED | 2× green |
| Operating system | Base OS based on Linux – Debian |
| Power supply – rated voltage – SELV (recommended) | 24 V DC |
| Power supply – absolute limits of input voltage | 10,2 V DC to 32,2 V DC |
| Operation temperature | from -20 °C to +60 °C |
| Mounting | DIN rail (35 mm) |
| Dimensions | 108 × 90 × 56 mm |
| Weight | 200 g |
| RTC | CR2032 lithium battery, lifetime approx. 10 years |
