Introducing Unipi Edge: New powerful controllers with Raspberry Pi Compute Module 4 and hundreds of variants

News

The latest Unipi Edge product line combines PLC, RTU, edge device, IPC, and IoT/IIoT gateway - all in a single, powerful product. Discover the three leading Edge models, E410, E411, and E413, equipped with Raspberry Pi Compute Module 4, which provides high performance for demanding applications. The controllers are fully variable: in addition to the e-shop offer, you can freely combine RAM/eMMC and wireless technologies, choosing from hundreds of product variants.

Key Features

Powerful Raspberry Pi Compute Module 4
Optional up to 8 GB RAM and 32 GB eMMC memory
Wide range of communication options including wireless – Ethernet, RS485, WiFi, Bluetooth, LTE and a variant with GNSS
Enhanced cybersecurity thanks to TPM 2.0
Compact design, high I/O and connectivity density
Operating temperature range from -20 °C to +60 °C
Software openness
Special features such as independent hardware Watchdog, counter inputs, user LEDs, or retain memory
Highly accurate analog inputs for voltage, current, or resistance measurement
Inputs, outputs, and RS485 communication lines are galvanically isolated
Wide power supply range and reverse polarity protection
I/O expansion with the xS product line
Product branding and customization options
Development and manufacturing in the European Union

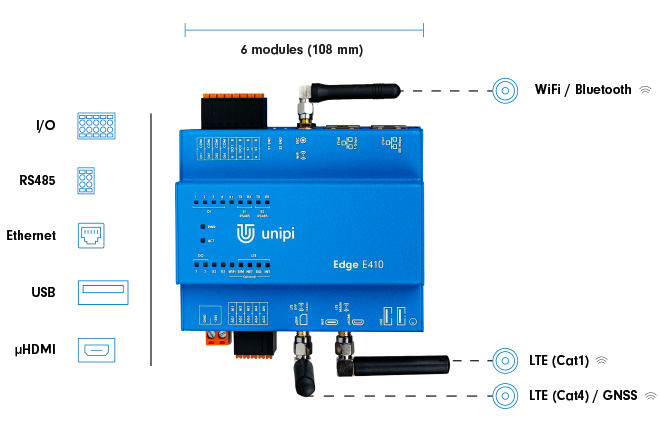

High connectivity density: maximum functionality in a compact design

With just 6 modules (108 mm), you get up to 11× digital and analog I/O, 2× Ethernet, 2× RS485, 2× USB, µHDMI, and wireless technologies LTE (Cat1/Cat4), dual-band WiFi, Bluetooth 5.0, and GNSS. Thanks to its form factor, the controller fits perfectly into standard switchboards. The robust aluminum chassis provides additional heat dissipation and protection against electromagnetic interference.

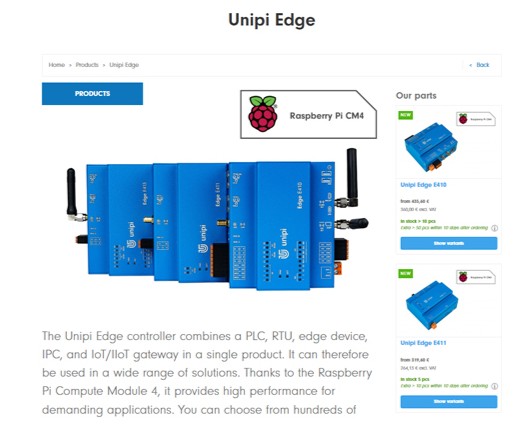

Overview of models and variants of the Unipi Edge product series

Fully variable Edge controller for your project

The latest Unipi Edge series offers three main models – E410, E411, and E413. Each of them can be customized individually. Thanks to the unique variability of this product series, you can choose from hundreds of different designs to suit your project requirements.

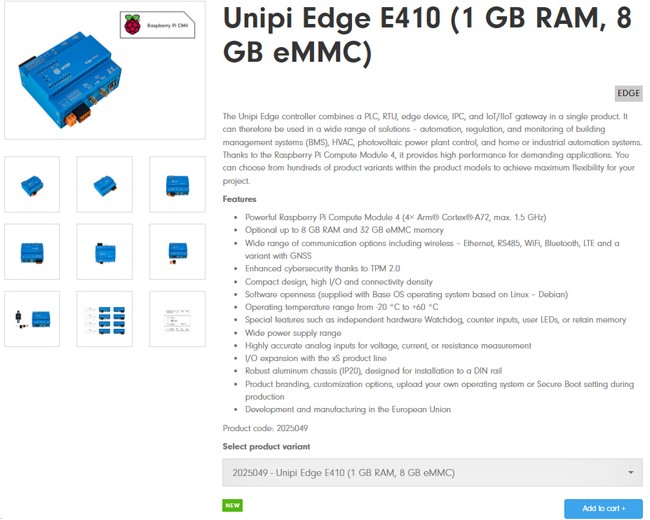

This flexibility allows you to assemble any combination of RAM/eMMC and wireless technology (LTE, WiFi/BT, GNSS) in addition to the variants available in our e-shop. Contact us for a quote.

An open platform for your complete control

Unipi Edge controllers come with Base OS, an operating system based on the Debian 13 Linux distribution. This allows Unipi hardware to be easily integrated into your software or third-party solutions.

Support for Linux, Node-RED, IEC 61131-3 (Mervis), EVOK API, Yocto
Possibility to create your own OS based on Debian

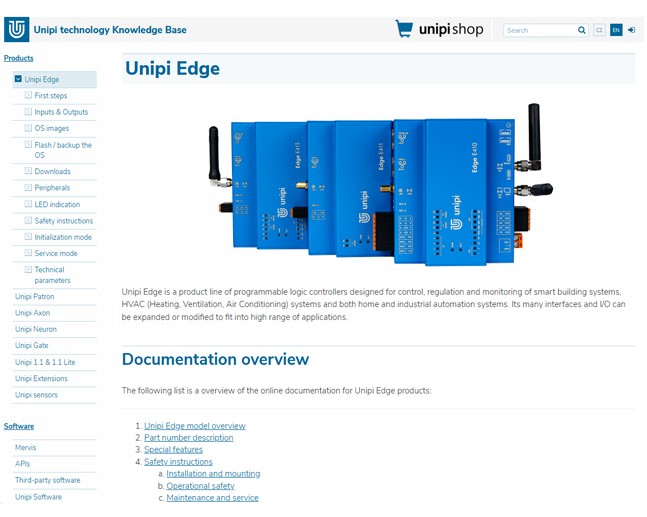

The operating system can be easily reflashed and any supported software can be installed on the device with any supported software. Follow the instructions in our Knowledge Base.

Each Unipi Edge device has a unique password on its manufacturing label. Base OS automatically uses this password as the default for login (SSH), ensuring secure and quick commissioning immediately after unpacking.

Note for Mervis users: In addition to flashing the OS according to the instructions, the latest version of the IDE, at least 2.6.5 (177925), must be installed to get Unipi Edge running.

Use cases examples

The Unipi Edge series is designed for automation, regulation, and monitoring of building management systems (BMS), HVAC, photovoltaic power plant control, and home or industrial automation systems.

Product branding and customization

Product with your brand and colors from 20pcs order. Option to implement specific communication technologies, expand I/O, add special features, upload your own operating system or enable Secure Boot setting during production.
