Resistance temperature sensors available in the Unipi product catalogue are designed for temperature measurements in monitoring, regulation and HVAC control projects. The sensors utilize the Pt1000 resistance chips and, along with compact size, offer quick installation and, easy connection to Unipi PLCs and extension modules. These features make the sensors suitable for building management systems, industrial installations, smart home, HVAC control systems and other automation projects.
What are the main advantages of resistance sensors?
- compact dimensions and favourable price,
- simple and universal solution for all applications with resistance measurement support (can be used in any system compatible with Pt1000 sensors),
- suitable for a wide range of applications (outdoor and indoor installations, industrial environment, temperature measuring inside pipelines and sumps, etc.),
- high response time and measuring stability,
- the practical design of plastic heads containing spring terminals for easy connection,
- sensors can be used immediately after the connection,
- all models undergo metrologic inspection,
- a wide selection of models, customization options (see below).

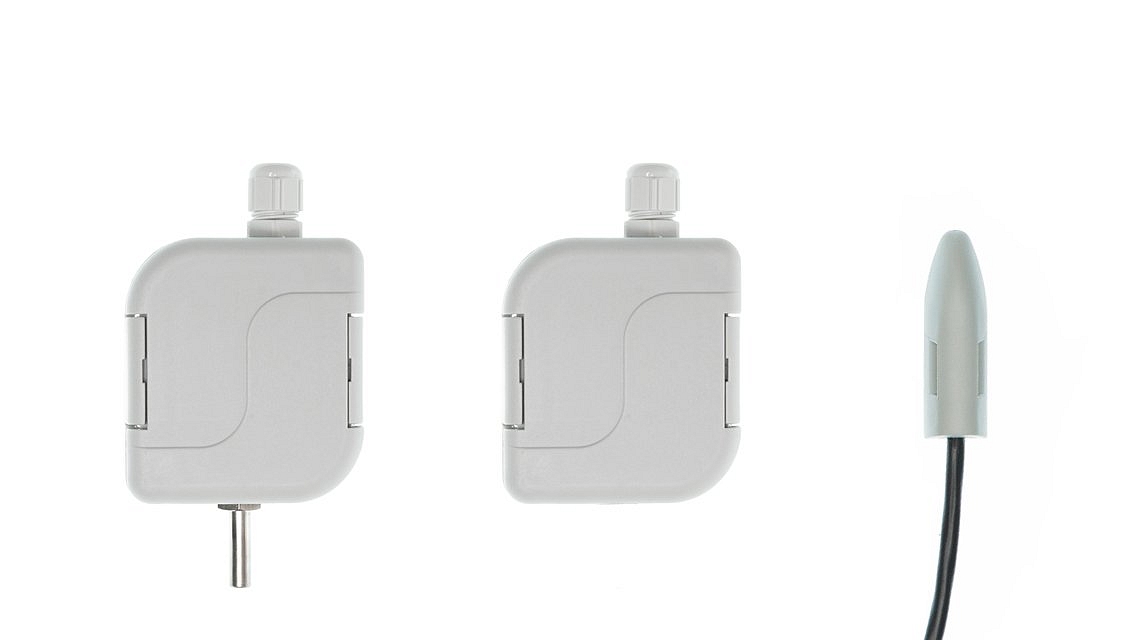

Overview of available products
| Pt1000 resistance pipeline surface temperature sensor (3 m) | |
 |
- designed for measuring the temperature on pipeline surfaces or below the pipeline insulation (fastening band included in the package), - the sensor is placed in a brass sheath (IP65 protection), - measuring range: -30°C/+105°C, - Class A accuracy: Δt =± (0.15 + 0.002t) in °C, - Class B accuracy: Δt = ± (0.3 + 0.005t) in °C, - internal wiring resistance: 0.102Ω/1 m (25°C), cable length: 3 m. |
| Display on e-shop | |
| Pt1000 resistance temperature sensor - indoor/outdoor, wall-mounted | |
 |
- designed for measuring temperature of gaseous and liquid substances in indoor, outdoor and industrial areas, - terminal box placed in a plastic head (IP65 protection), the sensor is protected by a metal sheath, - measuring range: -30°C/+100°C, - Class A accuracy: Δt = ± (0.15 + 0.002t) in °C - Class B accuracy: Δt = ± (0.3 + 0.005t) in °C - internal wiring resistance: 0.023Ω, - easy connection thanks to the spring terminal and practical design of the plastic head. |
| Display on e-shop | |
| Pt1000 resistance sump temperature sensor with a head | |
 |
- designed for measuring temperature in air distribution systems and sumps, - terminal box placed in a plastic head (IP65 protection), the sensor is protected by a metal sheath, - measuring range: -50°C/+150°C, - Class A accuracy: Δt = ± (0.15 + 0,002t) in °C - Class B accuracy: Δt = ± (0.3 + 0,005t) in °C - internal wiring resistance: 0,254Ω - easy connection thanks to the spring terminal and practical design of the plastic head. |
| Display on e-shop | |
Compatibility with Unipi products
Resistance sensors are fully compatible with all Unipi controllers and extension modules equipped with analog inputs.
Unipi Neuron, Unipi Patron and Unipi Axon controllers
Selected models of the mentioned product lines feature analog inputs, whose number differs depending on the specific model. For more info about Unipi controllers, please visit the product catalogue.
Unipi Extension xS51 module
A simple and inexpensive way to extend your system by additional inputs and outputs. The xS51 module communicates with the controller via the RS485 serial interface (Modbus RTU protocol). Aside from digital I/Os, relay outputs and analog outputs, the module also features four analog inputs. More detailed info is available in the module’s documentation on this link
Software options
Sensors are fully compatible with the Mervis system, the official software solution for Unipi controllers. Thanks to the compatibility with the EVOK open web-service API, you can use the data from the sensors either in your software or in any of the supported third-party solutions. For more info about the available software, please visit this link.
Wiring schemes for connecting the resistance sensors to Unipi products
Customization options
In cooperation with the manufacturer, we offer the option to customize the sensor features to suit your needs. Per request, it is possible to adjust the measuring probe length, sensor mounting, material and shape of the sensor’s sheath and other features. If interested, please get in touch with us on info@unipi.technology.
