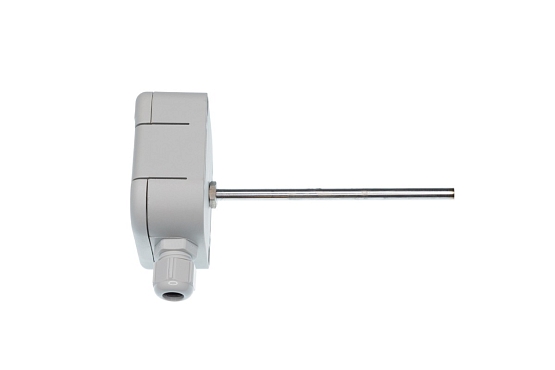

Pt1000 resistance sump temperature sensor with a head

The PTS 320-120 contact resistance temperature sensor is designed for measuring the temperature of liquid or gaseous substances. With a suitable thermowell and a holder, the sensor can be also used inside water and air distribution systems or pipelines. The device utilizes the Pt1000 resistance temperature sensor placed within a metal sheath. The plastic head (IP65 protection) contains a spring terminal for easy wire connection. The product underwent a metrologic inspection and can be used in any system compatible with the Pt1000 sensor.


50,00 €
41,32 € excl. VAT
In stock > 10 pcs
Check availability

Product description

The PTS 320-120 contact resistance temperature sensor is designed for measuring the temperature of liquid or gaseous substances. With a suitable thermowell and a holder, the sensor can be also used inside water and air distribution systems or pipelines. The device utilizes the Pt1000 resistance temperature sensor placed within a metal sheath. The plastic head (IP65 protection) contains a spring terminal for easy wire connection. The product underwent a metrologic inspection and can be used in any system compatible with the Pt1000 sensor.

Compatibility

The sensor can be connected to all systems that support resistance measurements and are compatible with Pt1000 temperature sensors. The wiring scheme is available in the product’s documentation (see the Files tab above).

The sensor is compatible with the Mervis and the EVOK web service APIs. In both environments, the sensor can be used immediately after connection.

Further info

Documentation

Manual
User guide and technical documentation
download
Product datasheet
Product features and technical information
download

Sensing element type Pt1000/3850
Temperature measuring range -50°C/+150°C
Measurement accuracy Class A: Δt = ± (0.15 + 0.002|t|) in °C, Class B: Δt = ± (0.3 + 0,005|t|) in °C
Internal wiring resistance 0.254Ω
IP rating IP65
Model name PTS 320-120
