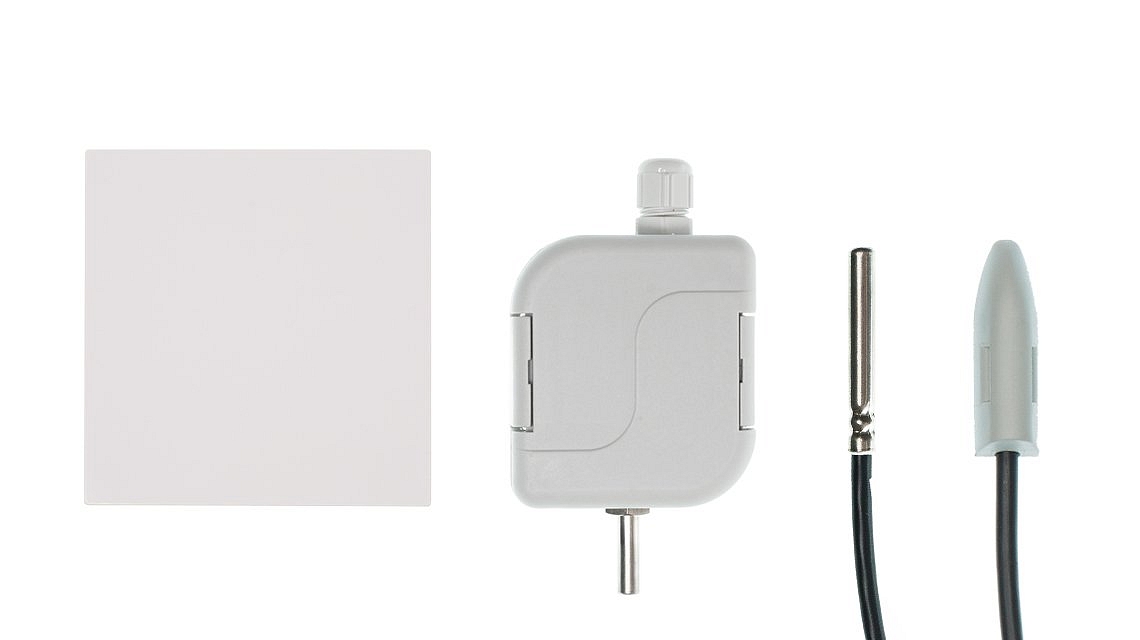

1-Wire temperature and humidity sensors available in the Unipi catalogue are designed for measuring temperature and humidity in monitoring, regulation and HVAC control projects. The sensors utilize original DS18B20 chips and, along with compact size, offer quick installation and easy connection to Unipi PLCs or the Unipi Extension xG18. These features make the sensors applicable in building management systems, industrial installations, smart home projects, HVAC control systems and other automation projects.
What are the main advantages of 1-Wire sensors?
- compact dimensions and favourable price,
- guaranteed stability and accuracy due to using original DS18B20 temperature chips,
- software and hardware compatibility with Unipi controllers and extension modules,
- suitable for a wide range of applications (outdoor and indoor installations, industrial environment, temperature measuring inside pipelines and sumps, etc.),
- the practical design of plastic heads containing spring terminals for easy connection,
- sensors can be used immediately after the connection,
- an option to extend the cable variants using patch cords and RJ45 connection boxes,
- a wide selection of variants, customization options (see below)
Overview of available products
| 1-Wire temperature sensors (various lengths) | |
 |
- designed for basic temperature measurements, - stainless steel sheath (IP67 protection), - measuring range: -55°C/+85°C, - accuracy: ± 0.5°C in range of -10 to 85°C, - RJ45 connector for easy connection to Unipi -devices, - selectable cable length (1.5/3/5/10 m). |
| Display on e-shop | |
| 1-Wire pipeline surface temperature sensor (3 m) | |
 |
- designed for measuring temperature on pipeline surfaces or below pipeline insulation (the fastening band is included in the package), - brass sheath with IP67 protection, - measuring range: -40°C/+105°C, - accuracy: ± 0,5°C in range of -10 to 85°C, - RJ45 connector for easy connection to Unipi devices, - cable length: 3 m. |
| Display on e-shop | |
| 1-Wire sump temperature sensor (3 m) | |
 |
- designed for measuring the temperature of gaseous and liquid substances, - with a suitable thermowell, the sensor can be used for measurements inside pipelines, - metal sheath with IP67 protection, - measuring range: -40°C/+105°C, - accuracy: ± 0.5°C in range of -10°C/+85°C, RJ45 connector for easy connection to Unipi devices, - cable length: 3 m. |
| Display on e-shop | |
| 1-Wire sump temperature sensor with a head | |
 |
- designed for measuring temperature in air conditioning ducts and sumps, - terminal box placed in a plastic head (IP65 protection), the sensor is protected by a metal sheath, - measuring range: -30°C/+125°C, accuracy: ± 0.5°C in range of -10°C/+85°C, - easy connection thanks to the spring terminal and practical design of the plastic head. |
| Display on e-shop | |
| 1-Wire temperature sensor - outdoor, wall-mounted | |
 |
- designed for measuring temperature of gaseous and liquid substances in indoor, outdoor and industrial spaces, - terminal box placed in a plastic head (IP65 protection), the sensor is protected by a metal sheath, - measuring range: -30°C/+125°C, - accuracy: ± 0.5°C in range of -10°C/+85°C, - easy connection thanks to the spring terminal and practical design of the plastic head. |
| Display on e-shop | |
| 1W-T-IB2 1-Wire wall-mounted temperature sensor | |
 |
- designed for measuring temperature in building interiors, |
| Display on e-shop | |
| 1W-TH-IB2 1-Wire wall-mounted temperature/humidity sensor | |
|
- designed for measuring the temperature and humidity in building interiors, - utilizes the DS2438 temperature sensor and the Honeywell humidity sensor, - can be installed in the universal wiring box (KU68), - temperature measuring range: -40°C/+85°C, accuracy +-2°C, - humidity measuring range: 11% až 89% RH, accuracy +-3% - easily accessible terminal box, esthetic design of the plastic box (IP30 protection). |
| Display on e-shop | |
Compatibility with Unipi products
1-Wire sensors are compatible with all Unipi products featuring the 1-Wire bus. Depending on the current device the sensors can be connected using the RJ45 connector, or through suitable splitters or reductions. Sensors with the plastic head have the grommet placed on the bottom edge of the head, allowing for the connection of multiple sensors to a single bus.
Unipi Neuron, Unipi Patron and Unipi Axon controllers
Selected PLC models from the mentioned product lines are equipped with a 1-Wire bus with a 3-pin connector. Sensors can be connected to it either by cutting away the RJ45 connector and wiring the conductors to the 3-pin terminal (see this link) or by using the RJ45 splitter. For more info about the Unipi controllers, please visit the product catalogue
Unipi Extension xG18 module
An easy and reliable solution for collecting data from up to eight 1-Wire temperature sensors. The device features RJ45 connectors, to which the sensors can be connected directly without any adjustments needed. 1-Wire channels of the module are independent of each other, preventing the failure of the entire bus in case of a single sensor error. The module communicates with the control system using the RS485 serial interface (Modbus RTU protocol). Further info about the xG18 module is available on this link. For an example of using the xG18 in combination with Mervis SCADA and Unipi controller, please visit the Multiple temperature monitoring using the xG18 extension (free) case study.
Note: The xG18 module does not support humidity sensors.
1-Wire 8-port hub
A simple 1-Wire hub with eight RJ45 connectors for connecting up to seven 1-Wire sensors (the eighth port serves for connecting the hub to a controller). For more info, please visit this link.
Software options
Sensors are fully compatible with the Mervis system, the official software solution for Unipi controllers. Thanks to the compatibility with the EVOK open web-service API, you can use the data from the sensors either in your software or in any of the supported third-party solutions. For more info about the available software, please visit this link.
Examples of use
An example of connecting seven 1-Wire sensors using a 1-Wire hub
An example of connecting eight 1-Wire sensors to the xG18 module.
For an example of using 1-Wire temperature sensors and the xG18 module to collect temperature data and send them to a cloud via Unipi Gate controller, please visit the Sending temperatures from Unipi Gate to a ThingsBoard cloud case study.
Customization options
In cooperation with the manufacturer, we offer the option to customize the sensor features to suit your needs. Per request, it is possible to adjust the measuring probe length, sensor mounting, material and shape of the sensor’s sheath and other features. If interested, please get in touch with us on info@unipi.technology.
